Premium in-House Tool Room & Advanced Die Engineering Solutions
JSP Brakes provides advanced Die Engine Solutions for 2W components. Delivering precision-engineered industrial dies, advanced production moulds, high-performance stamping systems, and specialized tooling solutions for OEM-grade automotive braking, friction, and structural component manufacturing. Our in-house engineering capabilities are developed to support demanding high-volume production environments with exceptional dimensional accuracy, thermal stability, structural integrity, and long-term operational durability.
Our Core Tooling Services

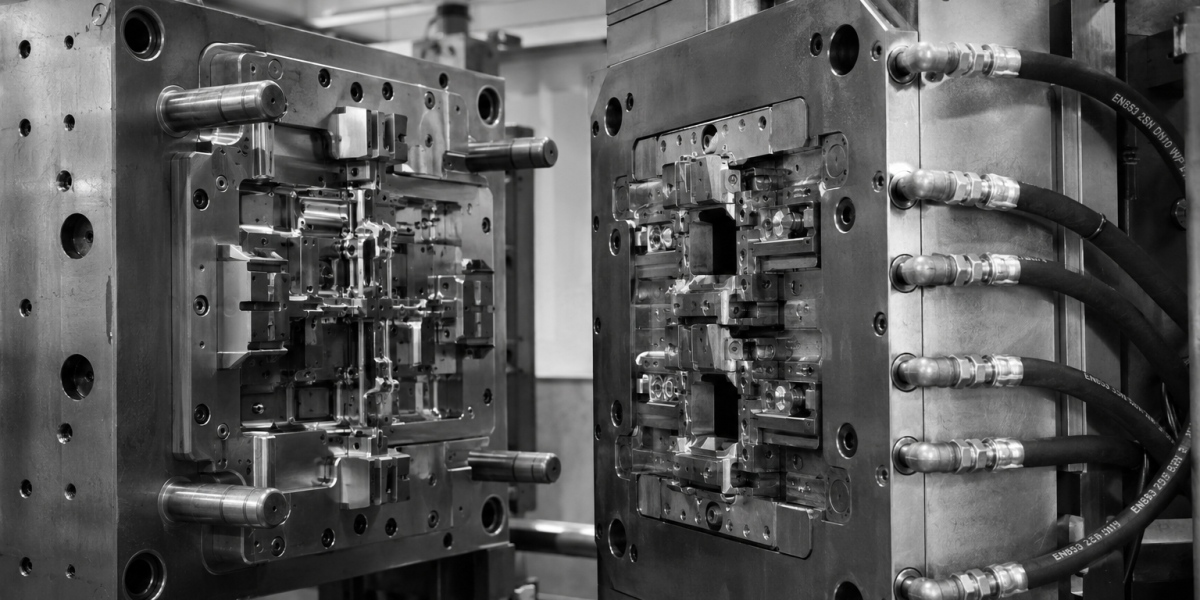

Die Casting Moulds (Aluminium & Zinc)
We design and manufacture heavy-duty, high-precision die casting moulds tailored for both Aluminium and Zinc alloys. These technical moulds are engineered specifically to cast dense, high-strength metallic frames for automotive Brake Shoes and Clutch Shoes, ensuring zero dimension deviation and high production durability.

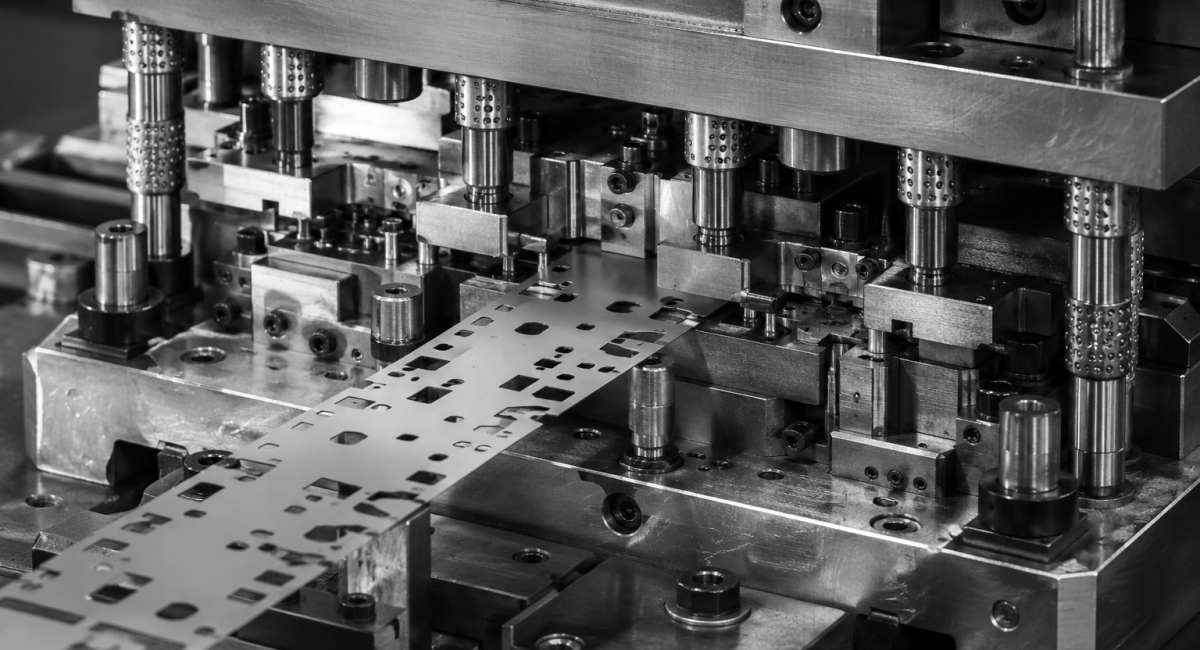

Sheet Metal Stamping Dies (Clutch Plates & Disc Brake Pads)
Our tool room specializes in building high-yield progressive tooling and single-stage blanking dies. These stamping dies are optimized to stamp out the heavy-duty steel backing plates for Disc Pads and the high-tensile inner core plates for Clutch Plates, delivering extreme flatness tolerances under high-volume automated cycles.

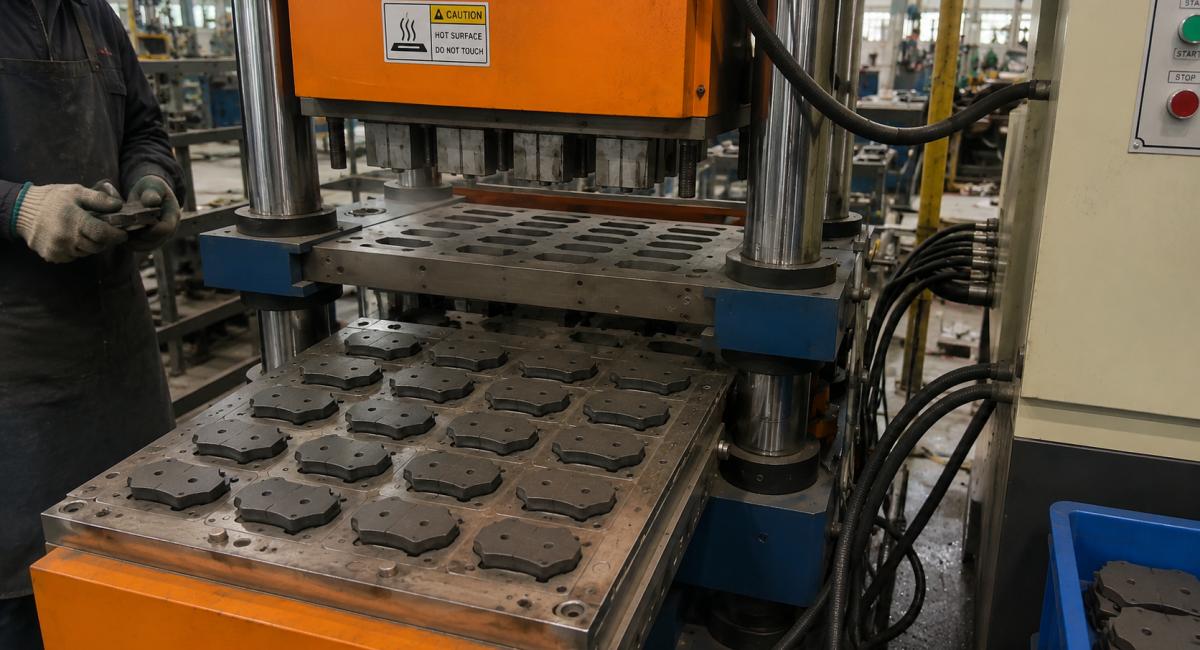

Moulding Dies for Brake Shoes, Disc Pads, Clutch Plates & Clutch Shoes
We construct high-pressure hot-compression moulding dies engineered specifically for the composite friction material bonding process. This specialized tooling ensures uniform heat distribution and perfect composite curing while bonding friction materials onto Brake Shoes, Disc Pads, Clutch Shoes, and Clutch Plates without structural weak points.
Advanced Technical & Die Engine Solutions
To guarantee world-class manufacturing excellence and total dimensional repeatability, our entire engineering infrastructure and tooling workflow strictly adheres to advanced global industrial standards. By aligning our component engineering with rigorous international validation checklists, we systematically eliminate structural defects, optimize cycle efficiency, and secure micro-tolerance fidelity across millions of production shots. From pre-production fluid dynamics simulations to final multi-axis coordinate metrology, every die engineered in our facility undergoes exhaustive technical compliance auditing to safeguard high-volume automotive component integrity under maximum operational stress.
Pre-Production Simulation & Rapid Tooling
- Core Specification: Before committing to mass production tooling, we offer rapid tooling and functional prototypes to validate component geometry, physical fitment, and structural performance under simulated stresses.
- Technical Impact: Eliminates dimensional errors, reduces development lead times, and ensures zero structural failures before hard tooling blocks are cut.
- Key Parameter Checked: CAD Clearance, FEA Stress Tolerance, and Geometric Fit Alignment.
Multi-Cavity Production Dies & Modular Unit Dies
- Core Specification: We manufacture long-life multi-cavity production dies alongside highly flexible unit die frames utilizing rapid-interchangeable inserts to support multiple product models on a shared master base.
- Technical Impact: Maximizes production throughput for high-volume B2B orders while reducing initial tooling capital investment for multi-model automotive distributors.
- Key Parameter Checked: Cavity Repeatability, Insert Lock Integrity, and Shot Cycle Speed.
High-Precision Hydraulic Trim Dies
Our high-precision hydraulic trim dies are engineered to deliver clean, accurate, and high-speed trimming operations for complex automotive die-cast components. Designed for demanding high-volume production environments, these advanced trimming systems efficiently remove casting flash, runners, gates, and overflows in a single controlled press stroke while maintaining exceptional edge sharpness and dimensional consistency.
Manufactured using premium-grade hardened tool steels and precision-machined assemblies, our trim dies are developed to withstand continuous industrial production cycles with minimal wear and long operational life. Depending on component geometry and production requirements, the tooling can incorporate single-stage, multi-cavity, and slide-integrated trim configurations for enhanced trimming accuracy and optimized production flow.
Every trim die system is carefully engineered to support burr-free finishing, reduced secondary machining operations, and improved production efficiency while ensuring that final automotive components meet strict OEM quality and tolerance standards.

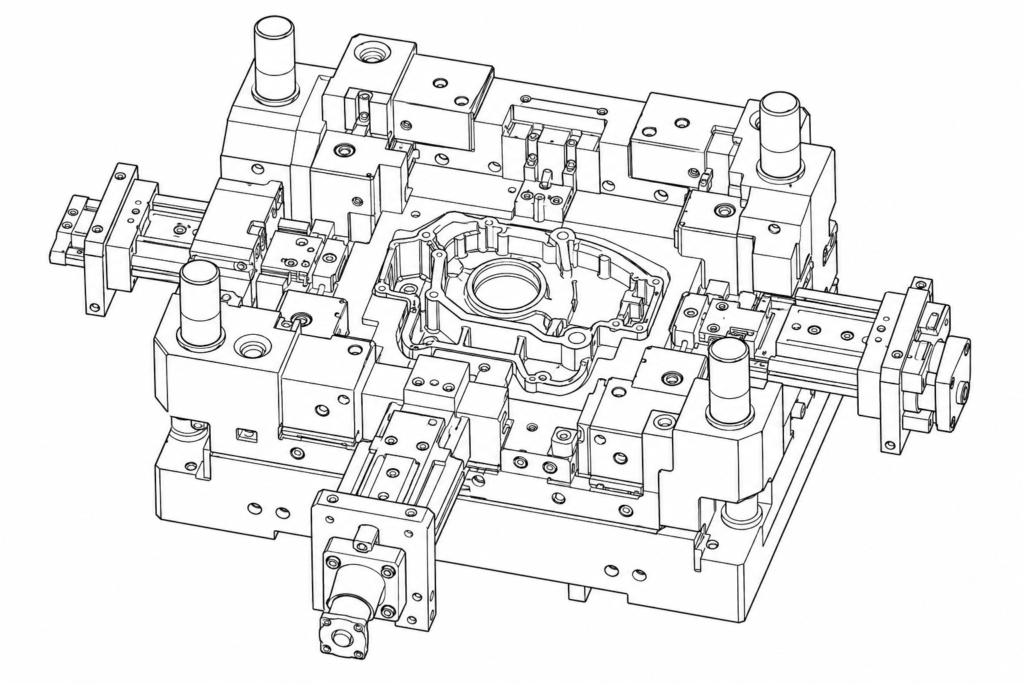

Advanced Casting Features & Core Slide Mechanics
Our advanced casting tooling systems are engineered with precision core slide mechanisms, optimized parting line configurations, and strategically balanced ejector systems to support the manufacturing of complex automotive brake and clutch components. Designed specifically for deep-cavity and intricate casting geometries, these tooling solutions ensure smooth component separation, stable structural integrity, and highly controlled metal flow throughout demanding high-volume production operations.
The integration of accurately aligned cover and ejector die halves, precision-machined core slides, and carefully positioned ejector pins minimizes drag marks, flash formation, dimensional distortion, and surface imperfections during extraction. Every tooling assembly is developed with strict engineering attention to draft angles, cavity alignment, and component release stability to maintain repeatable production accuracy and long-term die performance.
By combining advanced casting mechanics with high-precision die engineering standards, our tooling systems deliver flawless component extraction, superior casting consistency, and optimized operational reliability for OEM-grade automotive manufacturing applications
Premium Metallurgy & Vacuum Heat Treatment Engineering
Our die cavity inserts are precision-machined exclusively from premium-grade hot-work tool steels, including high-performance H13 steel grades specifically selected for demanding automotive tooling applications. Every tooling component undergoes a controlled vacuum heat treatment process engineered to maximize thermal fatigue resistance, structural hardness, and dimensional stability while preventing premature stress cracking under extreme operational conditions.
Developed to withstand continuous exposure to molten alloys, elevated compression pressures, and repeated thermal cycling, our hardened tooling systems deliver exceptional wear resistance and long-term production durability across high-volume manufacturing environments. The advanced metallurgical properties of our tooling materials ensure consistent operational reliability, minimized deformation risks, and extended die service life over hundreds of thousands of automated production cycles.
Each tooling assembly is validated through strict hardness verification, thermal fatigue evaluation, and metallurgical microstructure analysis to ensure optimal grain uniformity, structural integrity, and OEM-grade manufacturing performance.

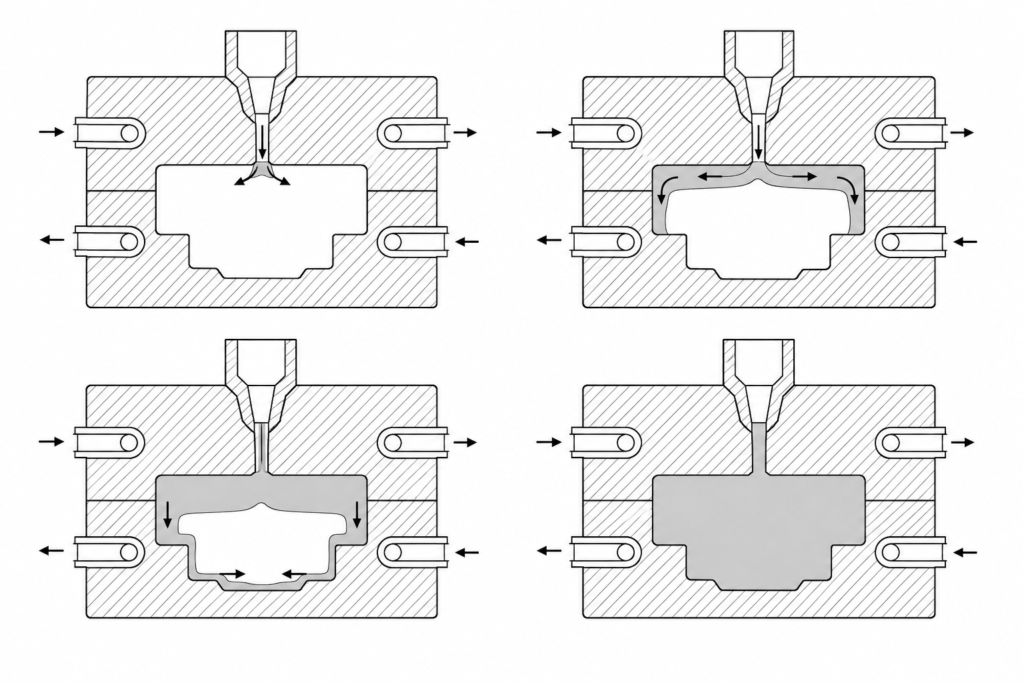

Thermal Balancing & Micro-Porosity Control Systems
- Core Specification: We implement strict porosity control through optimized gating, venting, and structural vacuum paths. The tooling features engineered internal oil heating lines and cooling paths for precise thermal balancing to extend overall die life.
- Technical Impact: Completely eliminates internal air pockets or cold shuts, guaranteeing uniform structural density across the entire friction surface of brake pads and clutch shoes.
- Key Parameter Checked: Fluid Velocity, Temperature Equilibrium, and Gas Evacuation Efficiency.

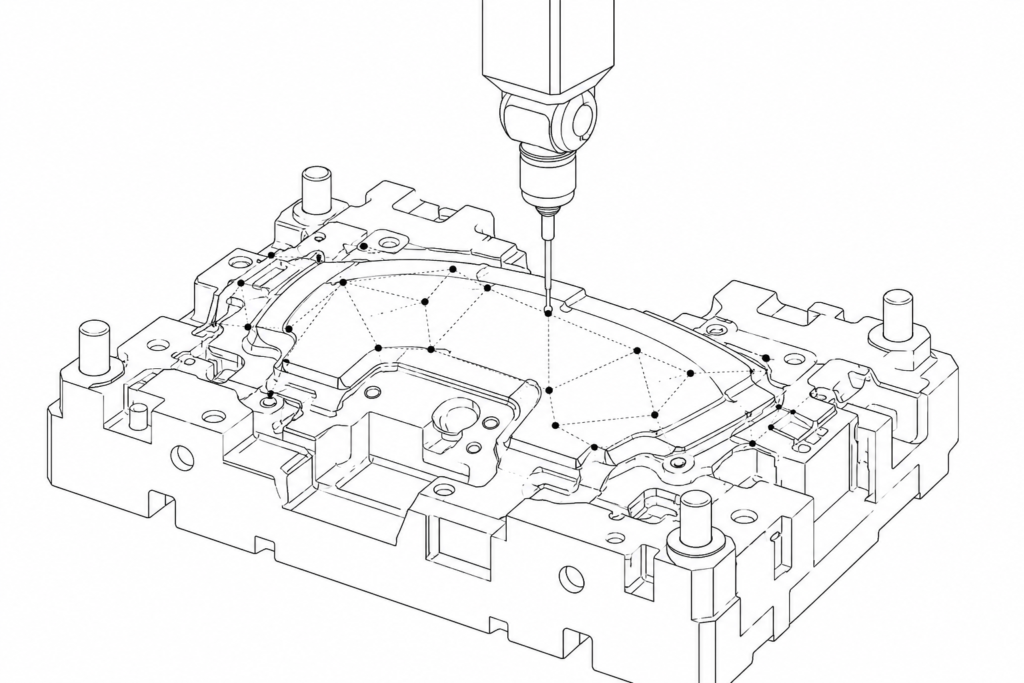

Automated Machining Preplanning & CMM Metrology
- Core Specification: Tooling layouts are pre-engineered to align perfectly with secondary machining fixtures. Final parts undergo multi-axis gaging considerations and full CMM verification to match original CAD tolerances.
- Technical Impact: Secures absolute batch-to-batch consistency and ensures zero-defect fitment when the parts reach the customer’s assembly line.
- Key Parameter Checked: Micro-Tolerance Accuracy, Datums Alignment, and Coordinate Verification Metrics.
